Polished Double Cut Carbide Burr Safe Die Grinder Bits For Hard Steel

Brand Name : KTS

Model Number : SG

Certification : ISO9001:2008

Place of Origin : Sichuan China

MOQ : 20 Piece/Pieces

Price : USD 1-10 Piece/Pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Piece/Pieces Month

Delivery Time : 7-30 Day

Packaging Details : Plastic box in Standard export carton

Contact Now

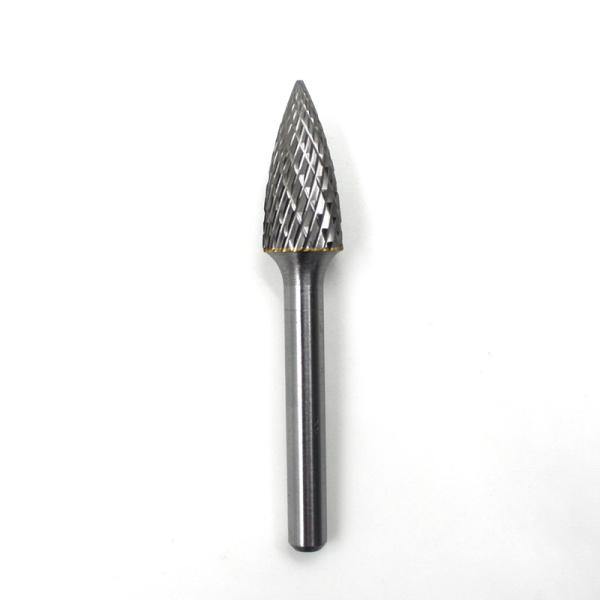

Polished Tools Carbide Rotary Burrs Tree Pointed Carbide Burr Die Grinder Bits

Tungsten Carbide Rotary Burrs is a new tape milling cutter with hign effciency,

instead of granding wheel burr with handle. It can cut and process various kinds of metal(including hardened steel)

finish machining of all kinds of metal mold cavities after quenched.


Chanmfering angles,circular beads and fluting.
Polishing impeller channels, fine grinding holes on work pieces.
Carving arts crafts of metal and nonmetal, Etc.

Shape&code Cut Dia Cut Length Shank Dia Shank length Total length Type
D1 L1 D2 L2
G0313M03-45 3 13 3 38 50 Brazed
G0618M06-45 6 18 6 45 63 Brazed
G0820M06-45 8 20 6 45 65 Brazed
G1020M06-45 10 20 6 45 65 Brazed
G1225M06-45 12 25 6 45 70 Brazed
G1425M06-45 14 25 6 45 70 Brazed
G1625M06-45 16 25 6 45 70 Brazed

Polished Double Cut Carbide Burr Safe Die Grinder Bits For Hard SteelPolished Double Cut Carbide Burr Safe Die Grinder Bits For Hard Steel

Performance

Carbide Rotary Files/Tungsten Carbide Burrs

User Safety Tips
. When carbide rotary burrs are used in the wind-driven or electric tools ,we must clamping tool,and speed is allowed generally 6000-40000 r / min,
. Cutting should be directed to move from right to left uniformity can not be the same as using the grinding wheel to reciprocating cutting;
be careful not to too much force (pressure is generally not more than 4 kg).User Safety Tips

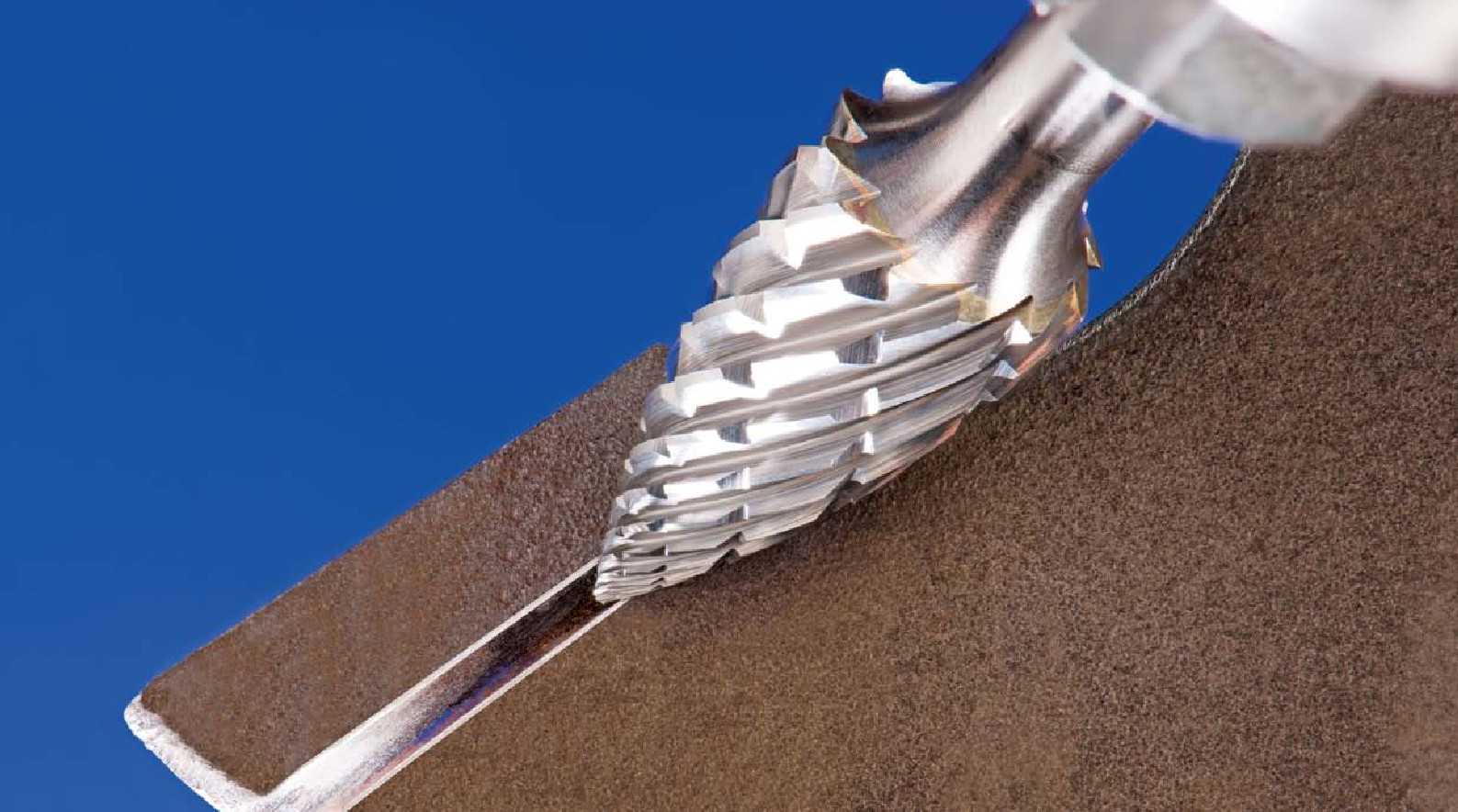

1, Used for finishing the surfaces of metal and non-metal
2, Removing the burrs of casting, forging and the welding spatter on the weld assemblies

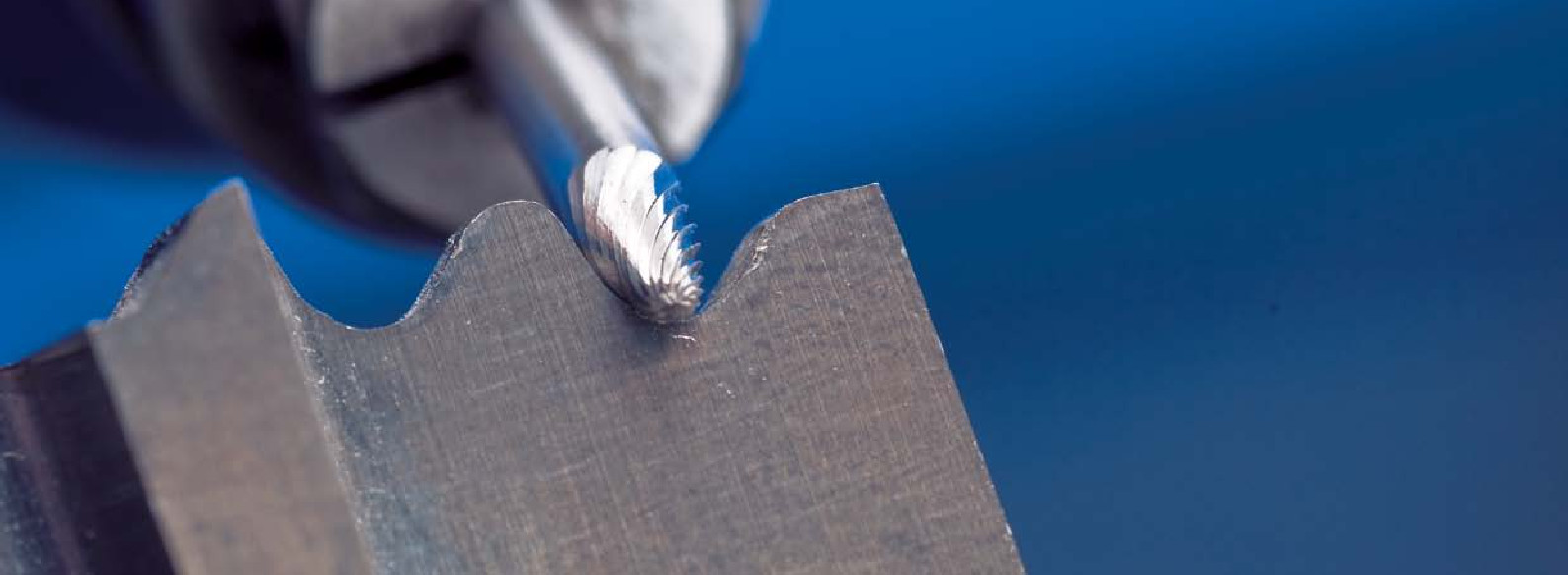

3, Chamfering angle, circular bead or flute on the mechanical parts
4, Chamfering or burring the pipes.
5, Polishing the impeller channel
6, Grinding the hole for accurate shape

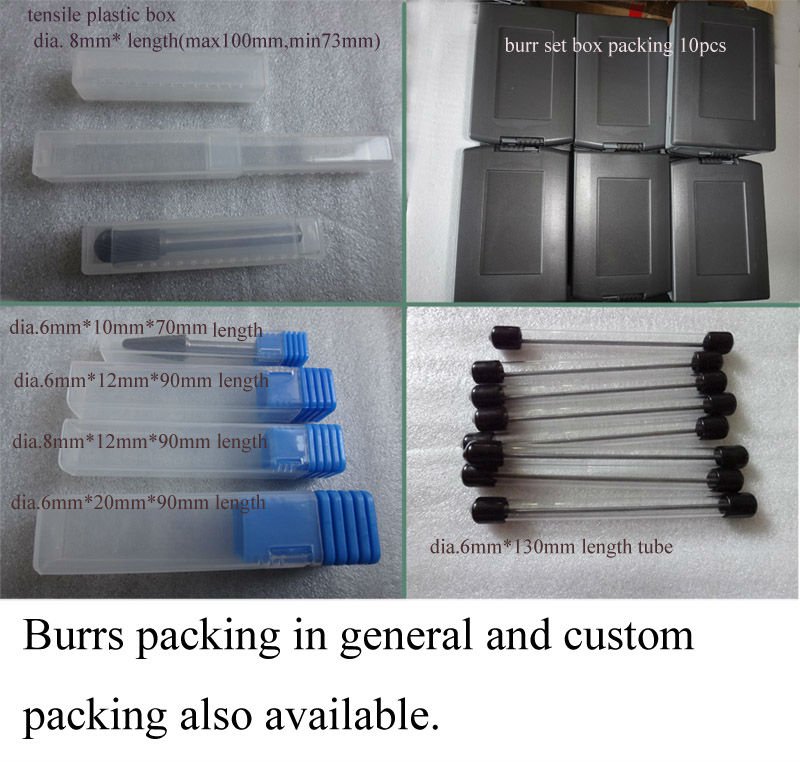

Sets for carbide cutters.
8 pcs in aluminum sets
8 pcs in plastic sets
The items can be selectable according to client demand.

Polished Double Cut Carbide Burr Safe Die Grinder Bits For Hard Steel
