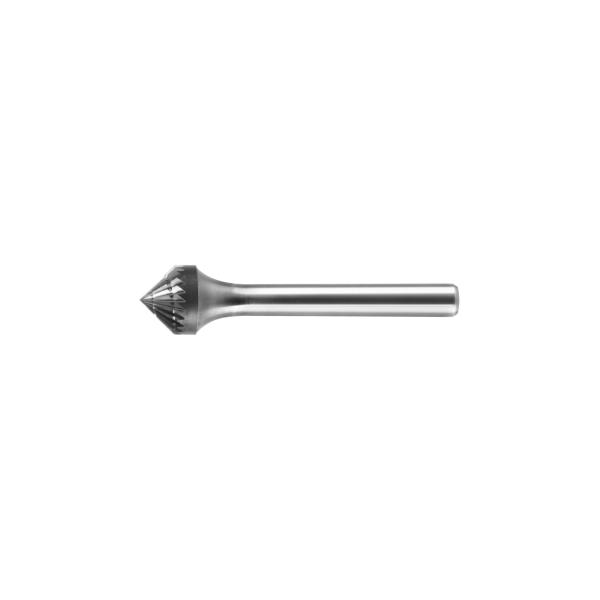

SK Carbide Burs - 90° Cone
Description:
They are good at gring, polishing and deburring. Can be used on metal and steel
Cut Type:
Double cut, Single cut, Diamond cut, Coarse cut, Fine cut, Non-ferrous cut.
Custom service:
Logo can be laser marked on burr shank, and custom sticker on box.
Sample service:
5 pcs of samples are for free to test quality.
Package:
Pack carbide burr with plastic tube, with blue, green, yellow cap, or five connected bpx; 8pcs aluminium set, 8pcs plastic set.
Advantages:
All products are silver welding products with flat bottom, quality is much better than copper welding, and it can lasts long time.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
| mat nr. MAX RPM | 3mm/0.123" 90,000 | 6mm/0.250" 50,000 | 10mm/0.375" 40,000 | 12mm/0.500" 35,000 | 16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Rotary file size selection:
The size of the rotary file is mainly based on the head diameter Dc and the handle diameter D2. The head blade diameter L2 and the total length L1 can be selected according to the specific operation requirements.
Standard type rotary file: The shank diameter (D2) mainly has 3mm, 6mm, 8mm, and 2.35mm is also optional. The length of the handle is a common specification for operations.
Extended shank rotary file: This kind of shank length can be selected according to the specific working conditions to extend the shank, generally 75mm, 100mm, 150mm, 300mm are commonly used. It is very suitable for processing hard-to-reach or deep areas. The longer the handle of the extended handle, the better, because too long will cause vibration during the grinding operation and affect the operation effect.
Miniature rotary file: Therefore, the diameter of the head of this kind of rotary file is small, and the diameter of the shank is generally 3mm. Because of its high concentricity, it is suitable for the trimming of station parts.
About Us
ZIGONG(CHENGDU) JOINT CARBIDE CO., LTD is subsidiary of ZIGONG JOINT CARBIDE CO., LTD a professional manufacturer of tungsten carbide rotary tools and carbide material. We have two subsidiary companies, one is in Chengdu city, Sichuan Province and the other one is in Zigong City, Province.
Founded in 2007 at Zigong City, Sichuan Province. In China, we are the exclusive factory who has equipments from raw material to finished tools producing. Including Inclinable Wet Milling, Pressing, Low Pressusring Sintering, Five-axis CNC, Electronic Tool Surface Scanner, Hard and TRS Testor. The main products include Carbide burr/ Carbide burr blank/ Carbide rod, and Carbide nozzle. We exported to North America, Europe, Asia and so on. We've been contributing to make high class cheap products to the world.
